doi: 10.29271/jcpsp.2024.09.1084ABSTRACT
Bile leakage in abdominal drain after cholecystectomy is reported to close spontaneously without any intervention. The aim of this systematic review was to find out the amount and source of bile leaks that can be closed spontaneously and various factors associated with this closure. A systematic search of PubMed, Google Scholar, and Cochrane under preferred reporting items for systematic reviews and meta-analyses (PRISMA) guidelines was performed. Ten studies were finally included in the review. Five studies were found from India, two from Pakistan, and one each from Mexico, Nepal, and Romania. Maximum volume of bile reported to close spontaneously was 500 ml per day and took seven days to close. Overall 66.6% cases of bile leaks were laparoscopically operated. Bile leakage in abdominal drain after cholecystectomy up to 500 ml per day closes spontaneously in a week time provided patient has no major ductal injury and peritonitis.
Key Words: Bile leakage, Abdominal drain, Endoscopic retrograde cholangiopancreatography.
INTRODUCTION
Bile leakage after cholecystectomy is a serious complication and carries significant morbidity and mortality.1-3 It may be seen after simple or difficult cholecystectomy and both after laparoscopic or open cholecystectomy.1,4 However, bile leakage is reported more after difficult and laparoscopic cholecystectomy.4-7 Postoperative bile leakage can be caused by unrecognised injury to extra hepatic biliary tree during surgery, leakage from cystic duct stump, leakage from gallbladder remnant after partial cholecystectomy, leakage from accessory duct or liver bed.1,8 Most common presentation of postoperative bile leakage is biliary peritonitis and biloma formation.5,7 Pain abdomen and fever are predominant symptoms however patient may have jaundice, vomiting, and tachypnoea depending upon the nature of injury and septic load.2,9 Treatment in modern era is minimally invasive starting from percutaneous aspiration of biloma under ultrasound or CT guidance and drain placement. This is followed by magnetic resonance cholangiopancreatography (MRCP) to find out the site of bile leak and if necessary endoscopic retrograde cholangiopancreatography (ERCP).10,11
ERCP has revolutionised the treatment of postoperative biliary leakage and open surgery is seldom carried out which carries significant morbidity and mortality. In majority of cases, ERCP and stent insertion with or without sphincterotomy is the definite treatment.11,12
There is another group of patients who present with bile leakage in abdominal drain which was inserted during cholecystectomy. Although routine drain placement after cholecystectomy is not recommended and many studies suggest that routine drain placement after cholecystectomy is associated with more complications and prolongs hospital stay.13-15 However, during difficult cholecystectomy when extensive dissection is carried out, surgeons still use subhepatic drains to avoid intra-abdominal collection of bile or blood.16 Patients who present with bile leakage in abdominal drain, may not have any abdominal symptoms as drain serves as controlled biliary fistula. Many studies suggest that bile leakage in these cases stops spontaneously over time provided that there is no major injury to the extra hepatic biliary tree.6,17 Such patients in developed world are again treated by ERCP and stenting which reduces pressure gradient between common bile duct and duodenum and fastens the recovery.12,18
This spontaneous closure of bile leak in abdominal drain is a blessing in disguise in poor resources, underdeveloped countries where ERCP facilities are not readily available and are costly as well.19 However, there are no strict guidelines available on the amount and nature of bile leakage that can be expected to close spontaneously. The aim of this systematic review was to find out the amount and source of bile leakage that can be managed conservatively and expected to close spontaneously in abdominal drain after cholecystectomy. Also, various factors associated with the success of conservative treatment will be explored. This review will help surgeons in developing the word to confidently wait for bile leak to close spontaneously where ERCP facilities are not readily available.
METHODOLOGY
This systematic review was conducted as per preferred reporting items for systematic reviews and meta-analyses (PRISMA) guidelines.20 PubMed, Google Scholar, and Cochrane databases were searched between 15th and 30th January 2023. Following keywords including bile leak, biliary leak, abdominal drain, cholecystectomy, difficult cholecystectomy, and subtotal cholecystectomy were searched for in each database (Figure 1). First two authors separately searched and screened the studies and no conflict was noted during the research process. All retrospective, prospective studies, clinical trials, case reports, and randomised clinical trials were included. Only studies with free full-text and English language were selected. All cases of cholecystectomies, whether open or laparoscopic or lap converted to open, performed electively or in an emergency after which bile leakage was observed in abdominal drain after cholecystectomy were included in the study. Those cases in which abdominal drain was inserted after aspiration of biloma under ultrasound or CT guidance were also included in the study. All those cases were selected in which bile leakage stopped spontaneously without any intervention. Corresponding authors of the studies, where additional information was needed, were contacted through E-mail or telephone. Only those studies were included in which bile volume and duration of stopping of bile were clearly mentioned and information was received from corresponding author. All cases where extrahepatic biliary tree was damaged peroperatively were excluded. The cases in which ERCP was performed to treat bile leak were excluded as well. Studies in which volume and duration of bile from drainage until stoppage were not clearly mentioned were excluded as well.
RESULTS
Ten studies met the inclusion criteria to be included in this systematic review. Five studies from India, two from Pakistan, and one each from Mexico, Nepal, and Romania were found. Four retrospective observational, four prospective, and two case reports were included (Table I). Most recent spontaneous closure of bile was reported in a case report from Mexico in 2022 while the oldest study was conducted in Romania in 2003. Maximum volume of bile reported to close spontaneously was 500 ml and took 7 days to close. Maximum time duration for bile leak to close was 4-34 days (range) and was noted in a study conducted by Pandit et al. in Nepal in six patients.6 All these patients presented with biloma formation and it was drained percutaneously and drain placed. Asif et al. from India mentioned that the maximum time duration for bile to close was 18 days in abdominal drain.21 Six studies mentioned the percentages of laparoscopic or open cholecystectomies in patients with bile leaks. These percentages when combined, showed that overall 66.6% cases of bile leaks were laparoscopically operated while 33.4% were operated for open cholecystectomies (Table II). Four studies showed more cases of bile leaks that were laparoscopically operated than open while two studies had more leaks in the open cholecystectomy group than laparoscopic.

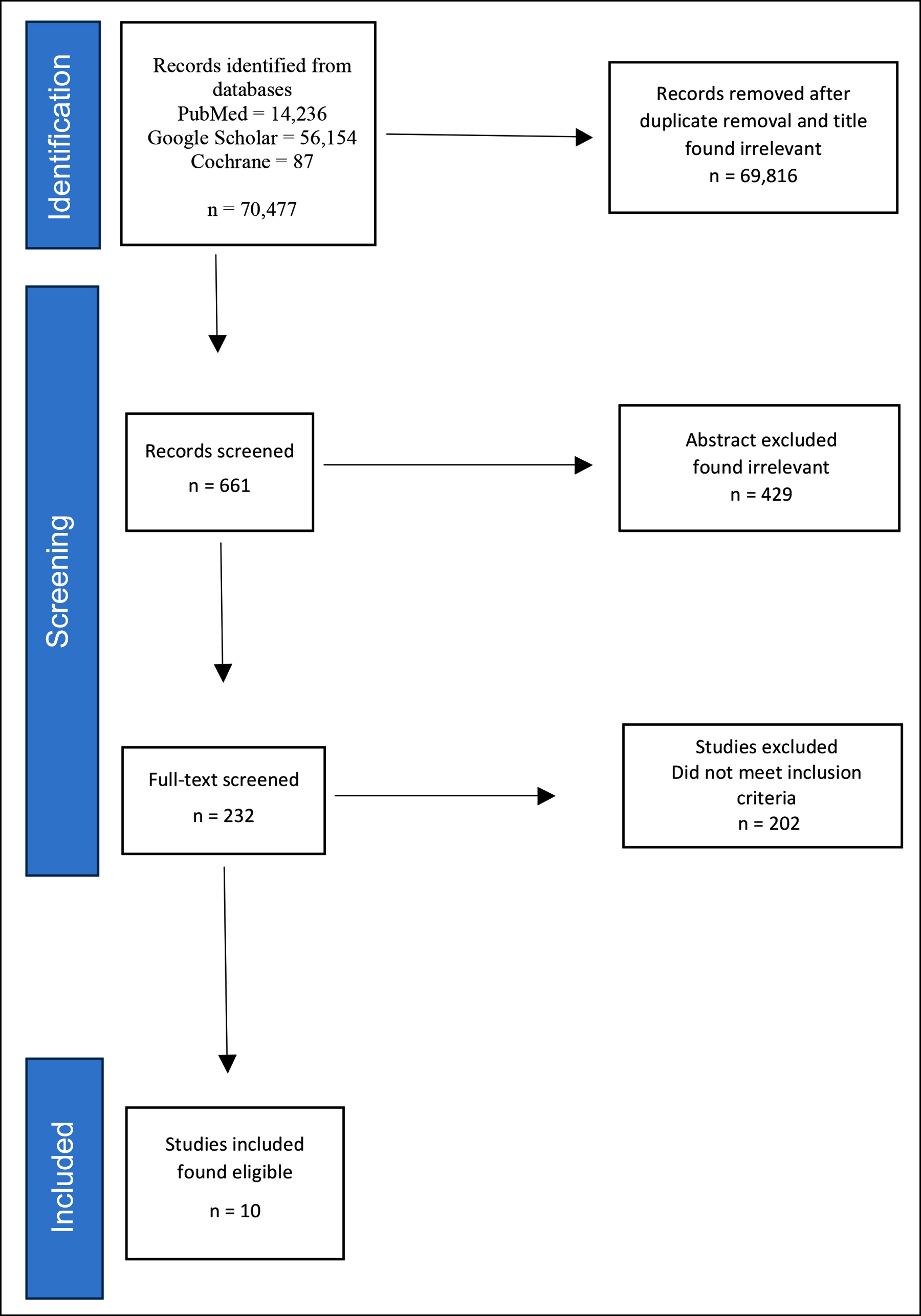

Figure 1: Prisma flow diagram.
DISCUSSION
Bile leak in abdominal drain after cholecystectomy is a serious complication and has many potential causes.7,8,10 It may be because of unrecognised injury to biliary tree during surgery or may be because of thermal injury to biliary tree that may present after a few days of cholecystectomy.10,29 Other common causes include leakage from cystic duct stump, leakage from accessory duct, leakage from gallbladder remnant after partial cholecystectomy or leakage from liver bed.1,8,30 Such patients may not have sign and symptoms of biliary peritonitis and the only presenting complaint is bile in abdominal drain. In developed countries where modern endoscopic facilities are readily available, treatment of such patients is ERCP and stent insertion after localisation of the site of biliary injury by MRCP.10,11,18 ERCP reduces pressure gradient between CBD and duodenum and lessens the bile drain and recovery is early.7,18
Table I: Summary of the included studies.
Study authors |
Country |
Year of publication |
Type of study |
No. of total bile leaks |
Leaks closed spont. |
Max. vol. closed spont. |
Max. days to close |
Lap. chole |
Open chole/ converted |
Asif et al.21 |
India |
2018 |
Prospective |
07 |
07 |
120ml |
18 |
140 |
80 |
Ahmed et al.22 |
Pakistan |
2020 |
Retrospective |
05 |
04 |
400ml |
14 |
48 |
0 |
Chatterjee et al.23 |
India |
2013 |
Case report |
02 |
01 |
200ml |
09 |
02 |
Nil |
Duka et al.24 |
Romania |
2003 |
Retrospective |
34 |
19 |
300ml |
10 |
9,542 |
184 |
Goswami et al.25 |
India |
2017 |
Prospective |
20 |
10 |
500ml |
07 |
405 |
785 |
Hadi et al.26 |
Pakistan |
2016 |
Prospective |
4 |
4 |
<300ml |
05 |
101 |
09 |
Kishore et al.17 |
India |
2016 |
Retrospective |
25 |
7 |
<500ml |
07 |
146 |
195 |
Pandit et al.6 |
Nepal |
2020 |
Retrospective |
18 |
7 |
200ml |
(4 - 34) days 11 days mean |
15 |
03 |
Roy et al.27 |
India |
2020 |
Prospective |
110 |
70 |
≥100 ml |
07 |
1436 |
49 |
Saveedra et al.28 |
Mexico |
2022 |
Case report |
01 |
01 |
<200 ml |
05 |
01 |
- |
NR: Not reported, Spont: Spontaneously, Vol: Volume. |
Table II: Summary of the studies included.
Study authors |
No. and percentage leak lap chole |
No. and percentage leak open chole |
Type of surgery |
Asif et al.21 |
5 (3.57%) |
2 (2.5%) |
Lap and open cholecystectomies |
Ahmed et al.22 |
5 (10.4%) |
Not done |
Lap partial cholecystectomy |
Chatterjee et al.23 |
01 |
Nil |
Lap cholecystectomy |
Duca et al.24 |
17 (0.17%) |
2 (1.08%) |
Lap and open cholecystectomies |
Goswami et al.25 |
7 (35%) |
13 (65%) |
Lap and open cholecystectomies |
Hadi et al.26 |
NM |
NM |
Lap and open cholecystectomies |
Kishore et al.17 |
7 (4.8%) |
18 (9.2%) |
Lap and open cholecystectomies |
Pandit et al.6 |
83.3% |
16.7% |
Lap and open cholecystectomies |
Roy et al.27 |
76.19% |
9.52% |
Laparoscopic and open cholecystectomies |
Saveedra et al.28 |
01 |
Nil |
Subtotal cholecystectomy |
Chole: Cholecystectomy, NM: Not mentioned, NA: Not applicable. |
Although modern diagnostic and therapeutic facilities such as MRCP and ERCP localise the site of the bile leak and help in early closure of leak respectively, many studies suggest that such bile leaks in abdominal drain close spontaneously without any intervention.22-25,31-33
The facilities of ERCP have improved in developing countries as well but still, they are not widely available and are costly as well.19,31 Ten studies were found in which the patients with post-cholecystectomy bile leak were managed conservatively with wait and see policy with abdominal drains without any intervention. Out of the ten studies, five were from India, two from Pakistan, and one was from Nepal, which are poor resource third-world countries and facilities of ERCP in the countries are limited and costly. Only one study each from Romania and Mexico were included. Pandit et al. in his study conducted in Nepal, has mentioned that those patients who were managed conservatively with drain were offered ERCP at far distant centres which were costly but they refused to travel and afford the expenses.6 Chatterjee et al.’s study conducted in India also reported that the patient refused to go for ERCP due to financial issues and opted to wait for controlled biliary fistula to close.23
The amount of bile that can be closed spontaneously is a matter of debate. In a study conducted by Goswami et al. in India, 14 out of 20 patients with post-cholecystectomy bile leak were managed without any intervention with controlled external biliary fistula.25 In this study, maximum amount of 500 ml bile per day was found to close spontaneously and it took 7 days to close. In another study conducted by Kishore et al. in India, 56% patients with postcholecystectomy bile leaks were managed without any intervention with simple abdominal drains and a maximum of 500 ml daily output of bile in abdominal drain was recorded and took 7 days to close.17
The bile that closes spontaneously either leaks from cystic duct stump, small accessory duct, liver bed, and other smaller source.6,26,27 Major ductal injuries that go unrecognised during surgery and present as bile in abdominal drain are seldom closed with conservative means and require intervention in the form of ERCP, stenting after confirming the site of biliary injury by MRCP. Kishore et al. mentioned that six drains that continued to drain bile beyond 2 weeks showed ductal injuries on ERCP later.17 The maximum time for bile to close spontaneously was found in a study conducted by Pandit et al., in which the maximum time reported for biliary fistula to close is 4-34 days (range) with a mean of 11 days.6 The patients where biloma aspiration was performed and drains were placed percutaneously, took longer to close than the patients where drains were placed peroperatively. Asif et al. in India, reported that the maximum time for bile to close was 18 days in one patient.21 However, if bile leakage continues in abdominal drain beyond 2 weeks without significant reduction in volume, major ductal injury should be suspected and MRCP followed by ERCP should be performed to diagnose and treat the injury.
This review revealed that the incidence of bile leakage after cholecystectomy was collectively more common after laparoscopic than open cholecystectomy. Overall 66.6% cases of bile leaks were laparoscopically operated while 33.4% were operated as open cholecystectomy. However, few studies showed that the bile leakage was more common after the open cholecystectomy than laparoscopic. Study conducted by Kishore et al. in India showed that more cases of bile leaks were operated by open than laproscopic (9.2% >4.8%) means.17 In a study conducted by Pandit et al., out of 18 cases of bile leaks, 15 (83.7%) were found to be operated laparoscopically.6 Goswami et al. in his study reported 20 cases of bile leaks in which 7 (35%) were operated laparoscopically while 65% cases were operated as open cholecystectomy.25 In a study conducted by Asif et al. in India, the incidence of bile leak in laparoscopic and open cholecystectomy did not show statistically significant difference (3.5% vs. 2.5%).21 Patients who presented with biloma formation after cholecystectomy were treated initially by percutaneous drainage under ultrasound or CT guidance and drain placement as well.34 Such patients may not need ERCP or any other intervention later, if they develop low output controlled biliary fistula which will close spontaneously. In the study conducted by Pandit et al., six patients presented with biloma formation postcholecys-tectomy who were managed by percutaneous aspiration of biloma and drain placement.6 All six patients settled with drain as they had low output fistula which closed in a week time and none required the ERCP or any other intervention. If conservative management of biliary leakage is planned, it is important that the common bile duct is distally clear of stones or any obstruction and bile flows freely in the duodenum. MRCP is non-invasive diagnostic modality to clearly define the nature of injury to biliary tree and to detect stones in bile duct.32,33 In developing countries, occasionally clinicians have to rely on basic clinical findings and cheaper investigations, such as abdominal ultrasound and liver function tests to confirm biliary tree status.19
Routine drain placement after cholecystectomy is no longer recommended.13-15 Studies suggest that surgeons still prefer subhepatic drain placement after difficult cholecystectomy when there is extensive dissection and adhesiolysis carried out during the surgery, although evidence to support drain placement is lacking.35,36 Asif et al. placed abdominal drains in all patients undergoing difficult cholecystectomy as a routine protocol in their hospital.21 In difficult situations when Calot’s triangle dissection is not possible, surgeons have to perform subtotal or partial cholecystectomy which is associated with more complications including post-operative bile leak and the surgeons prefer to place drain in gallbladder fossa after surgery.37,38
CONCLUSION
Bile leakage in abdominal drain after cholecystectomy can close spontaneously without any intervention provided patient has no major ductal injury, no peritonitis, and the CBD is distally clear. Bile leakage up to 500 ml per day may serve as controlled biliary fistula and closes in a week’s time in the absence of above mentioned conditions.
COMPETING INTEREST:
The authors declared no conflict of interest.
AUTHORS’ CONTRIBUTION:
MTG: Conceptualisation of the study, data search and analysis, and writing of the manuscript.
IUH: Data search and analysis and critical revision of the manuscript.
IUR: Manuscript revision, editing, and finalising the manuscript.
NS: Editing and proofreading.
All authors approved the final version of the manuscript to be published.
